3d printed - ATO Float Switching, Snail Guarding, Tank Mounting Reef Goodness

[skunkmere]

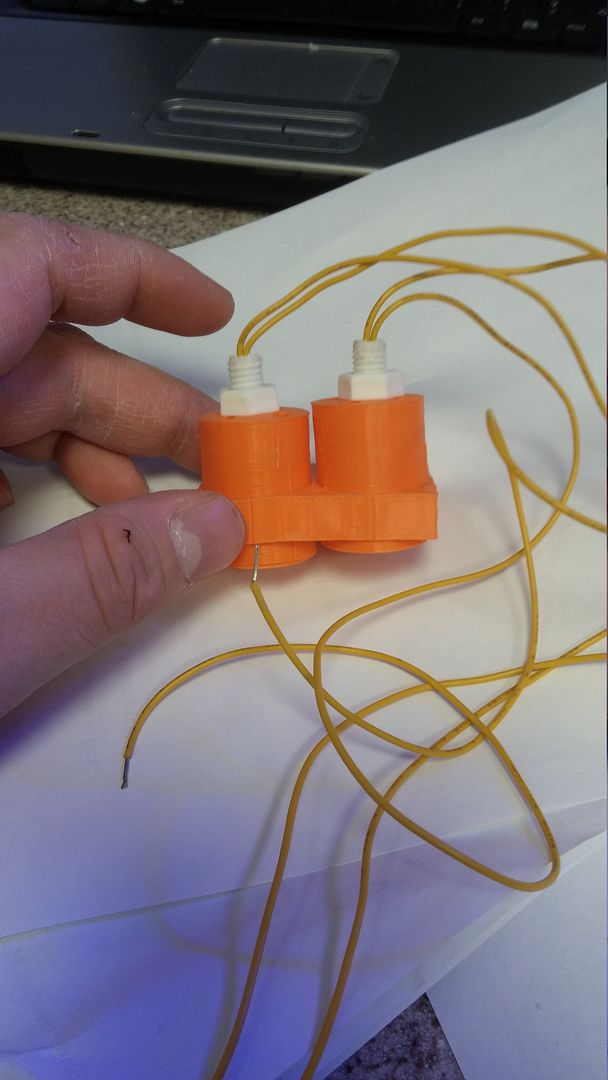

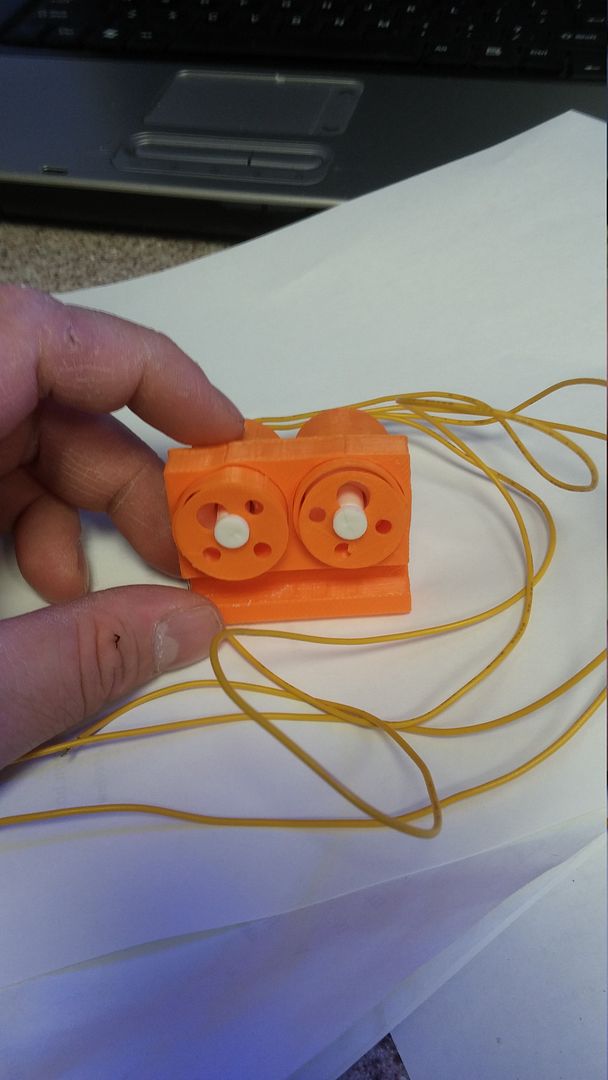

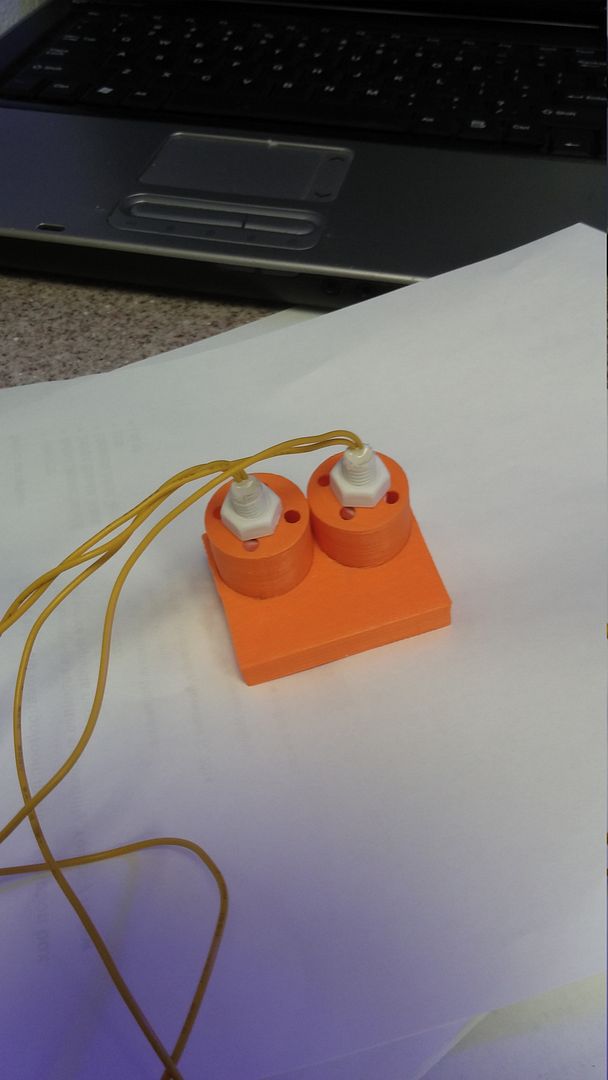

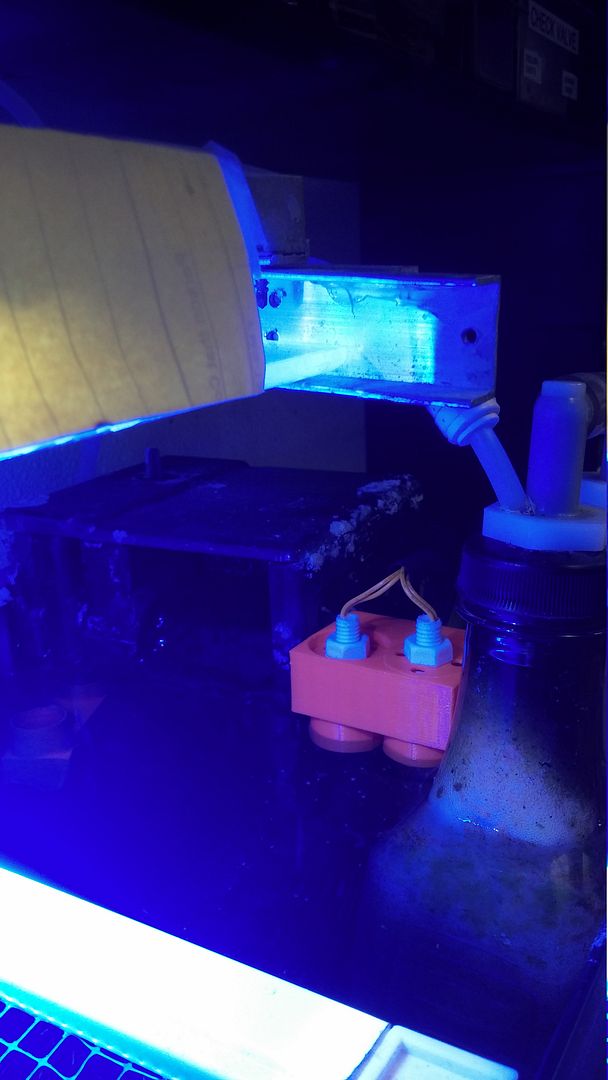

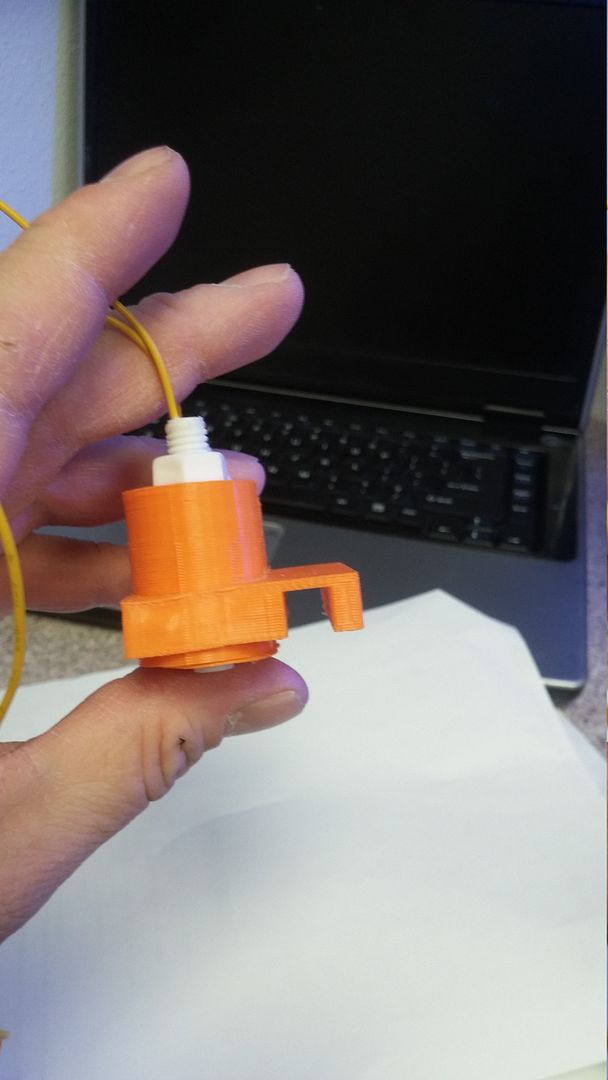

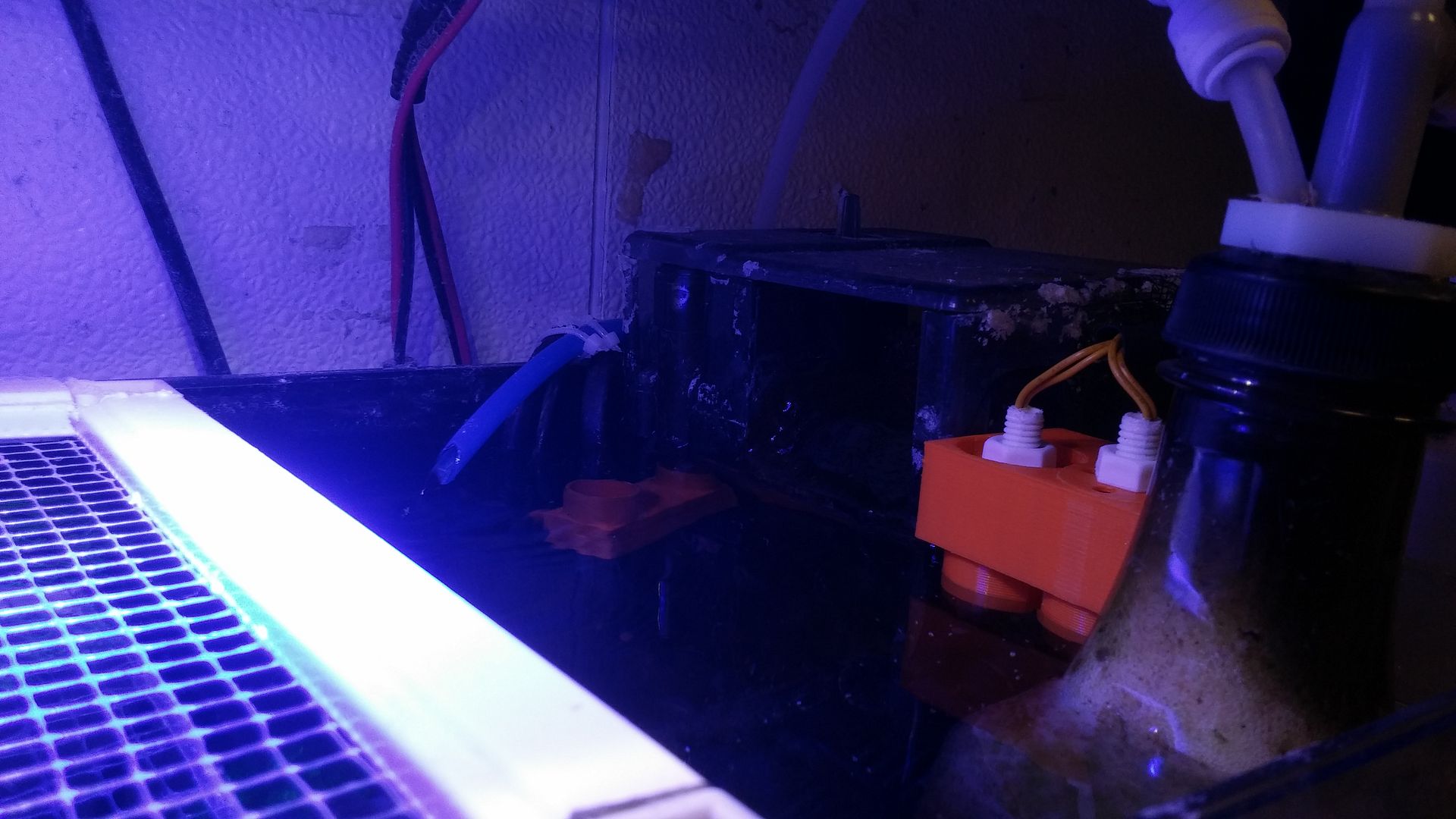

My latest creation for my 9g pico tank. the last photos were the first version, it was too short and i had to make a taller bracket to hit my water line.



[skunkmere]

used these http://www.ebay.com/itm/Mini-Horizontal-Liquid-Pool-Water-Level-Sensor-Internal-Connectors-Float-Switch-/191077665217?pt=LH_DefaultDomain_0&hash=item2c7d1dc9c1



[cet98]

you're a total bad mamma jamma pimp daddy....................



now send me that text brah......



[Siebo]

DIY king! That is sweet!



[skunkmere]

thanks, i needed something with a small footprint. im running 12v 1A through the switches and right to a dosing pump for the ATO. so no relay.



[madjoe]

Very cool



[rhymechizel]

very impressive



[maazreef]

Amazing!
Doing side jobs?



[skunkmere]

always, im down if anyone wants these. just a warning don't run a full amp through those float swithes. they stick closed. i had a call from my job at 4am that my tank was overflowing. I ran 12v 1AMP through the floats and found that they got stickey at that current. pm me if you want some of these> ill trade for frags or donations for filament.



[Joe5688]

That's sweet. Print me a dosing tube holder lol.



[superchargedgp]

That's sweet. Print me a dosing tube holder lol.

Make that 2 holders



[skunkmere]

ok, pm me tank trim size in mm and how many tubes.



[superchargedgp]

3 tubes for me



[skunkmere]

pm what your tanks trim is
